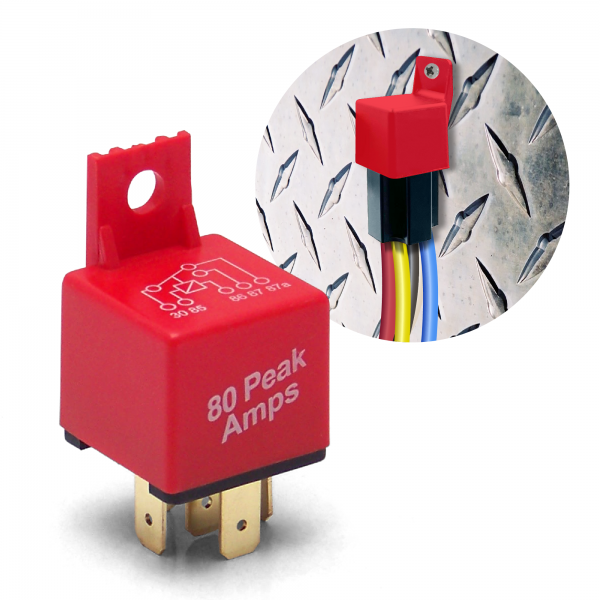

Description of Product KICRA8000

Keep It Clean's heavy duty 80-amp automotive relays are your best choice for any type of 12-volt wiring project where peak loads are going to exceed 80 amps. Designed to handle high automotive currents, Keep It Clean's single pole double throw 80-amp relays will never get stuck or short out.

FEATURES:
- Heavy Duty 80 Amp
- 5 Terminals / 5 Pin
- 12 Volt DC
- SPDT
- Water resistant sealed case
- Convenient mounting tab for 1/4” fastener
- Recommended for maximum performance & power

Professionally tested and certified for a long life of smooth operation at any temperature. Up to 50,000+ cycles.

Keep It Clean relays are ideal for controlling any 12V accessories such as: Power Door Lock Actuators, Power Trunk/Hood/Hatch Solenoids, Linear Actuators, Air Compressors, Cooling Fans, Headlight Controllers, Power Windshield Wipers, and more!

This SPDT relay / electromagnetic switch consists of:
Coil Terminals :: 85 and 86
Common Terminal :: 30
Normally Closed Terminal :: 87a
Normally Open Terminal :: 87

When the coil of an SPDT relay is at rest (not energized), the common terminal (30) and the normally closed terminal (87a) have continuity. When the coil is energized, the common terminal (30) and the normally open terminal (87) have continuity.

For easier wiring, we recommend adding a 5 pin relay socket harness plug when installing your relay.

Includes Free Live USA Technical Support and a Limited Lifetime Warranty.

Features

• Peak Amps :: 80
• Voltage :: 12v DC
• Terminals :: 5
• Terminal Type :: Blade
• Retention Spring :: 2X
• Contact Style :: SPDT (Single Pole, Double Throw)
• Contact Material :: Brass
• Designed For :: Maximum Performance & Power
• Quality :: Heavy Duty
• Power Consumption :: Low
• Low Heat :: Yes
• Sealed Case :: Water Resistant
• Compact Size :: Yes
• Relay Height :: 2" (51mm)
• Relay Height without Mounting Tab :: 1.375" (35mm)
• Relay Width :: 1" (25mm)
• Relay Height :: 0.875" (22mm)
• Tab Height :: 0.625" (19mm)
• Mounting Style :: Tab Hole .25" (6.3mm)
• Terminal Width :: 0.25" (6mm)
• Terminal Height :: 0.5" (13mm)
• Quantity :: Each (1)
• Wiring Harness Included :: No
• Installation :: Easy with Basic Tools
• Instructions :: Detailed Instructions
• Warranty :: Limited Lifetime Warranty
• Support :: Toll Free Tech Support
