$16.95 USD

Description of Product KICRAS51

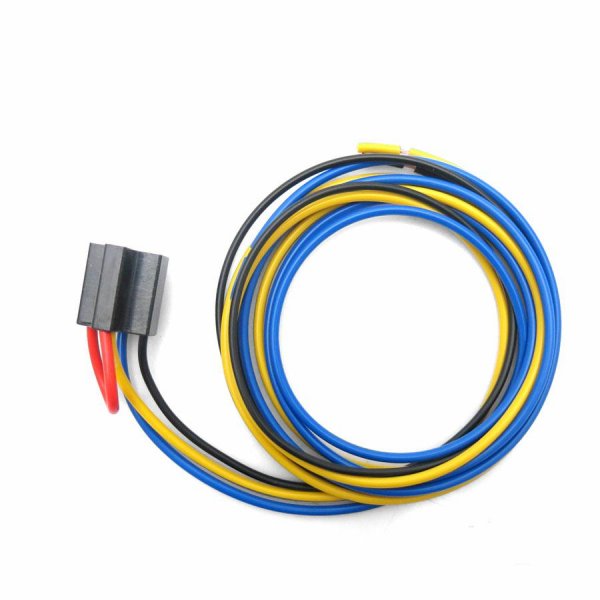

Keep It Clean relay pigtail socket features 48” long leads to complete your job without the need to splice wires, allowing you to place the relay in the best possible location. The heavy gauge wire allows you to handle up to 30 amps rush and 20 amps continuous power making this perfect for almost all your 12 volt DC accessories that do not need the normally closed (NC) circuit.

Keep It Clean heavy duty relay sockets make your installation a snap! Our pre-wired relay socket is ideal for use with door popper, shaved door and trunk solenoids. It can be used in several additional applications including radiator cooling fans, horn relays and more! Plugs into 5 pin relays and works best on any single pole double throw (SPDT) relay but will also work on a single pole single throw (SPST) relay.

We recommend the use of SKU: 11048 - Keep It Clean 30/40 amp single pole double throw relays (SPDT). This socket lacks the Normally Closed (N.C.) wire, which simplifies the installation in applications that do not require it. For relays that require the normally closed circuit please use SKU: 11029.

Each plug-n-play socket includes heavy duty 14 gauge OFC copper wires, plated terminals, and high impact ABS plastic base.

Yellow Wire = Pin 30 12V Power Supply
Red Wire = Jumper from Pin 30 to Pin 85
Blue Wire = Pin 87 12V Power Out when Relay is Energized
Black Wire = Pin 86 Negative (Ground) Signal for Energizing Relay(from Keyless or Alarm)
*Using the red jumper wire makes relay operation possible with just 3 wires.

ALL Keep It Clean parts come with Detailed Instructions, FREE LIVE USA Technical Support and a Limited Lifetime Warranty.

Features

• Wires :: 4
• Leads :: 48" (122cm)
• Relay Socket :: 1
• Voltage :: 12V
• Amps Rush :: 30 Amps
• Amps Continuous Power :: 20 Amps
• Wires :: Color Coded
• Wire Gauge :: 14 Gauge
• Application :: 12V DC Accessories That Do Not Need The Normally Closed Circuit
• Use With :: 30/40 Amp SPDT 4/5 Pin Relays
• Base Material :: ABS Plastic
• Terminal Material :: Zinc Coated
• Wire Material :: OFC Copper
• Instructions :: Detailed Instructions
• Warranty :: Limited Lifetime Warranty
