Description of Product KICHARNAT

The Zirgo Universal Radiator Temperature Control Kit Puts You in Control Because it Lets You Dial The Exact Temperature You Want Your Fan to Turn On! Perfect For Engines With An Optimal Operating Temperature Greater Than 180 Degrees F (82.2 C).

MORE CONTROL
The adjustable dial allows you to set the fan to turn on anywhere between 180 - 240 Degrees Fahrenheit (82.2 - 115.5 Celsius) so you can be in complete control of your operating temperature.

EASY INSTALLATION

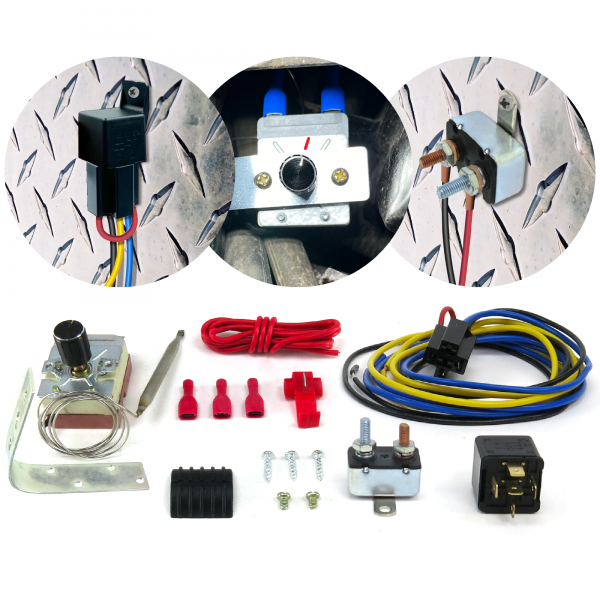

This kit contains everything you need to put you in control of your engine temperature in one convenient Plug -N- Play package! For easy installation this sensor probe can either fit in your water-neck or between the fins on your radiator.

SWITCH FEATURES:
- Adjustable from 180 - 240 Degrees F (82.2 - 115.5 Celsius)
- Analog Input Sensor
- Easy Install Probe
- Mounts in Water-Neck or Between Radiator Fins
- 5 Degree Accuracy
- Measures Fluid Temperature
- Leak Proof Water-Neck Gasket Included
- Mounting Bracket Included
- Wiring Included (OFC Copper Wire)

ADDITIONAL FEATURES
- Plug -N- Play
- Heavy-Duty 40 AMP SPDT Relay w/Mount
- Heavy-Duty Wiring Harness
- Heavy Duty 40 Amp Circuit Breaker w/Mount

Also Available:
- Adjustable Digital Version 0 -240 (115.5 Celsius) SKU: 191655

Zirgo Offers Detailed Instructions, FREE Customer Support and a Limited Lifetime Warranty.

Features

• ---------- :: ADJUSTABLE TEMP CONTROL SWITCH
• Input Sensor :: Analog
• Adjustable :: Yes
• Measures :: Fluid Temperature
• Mounting :: Water-Neck or Between Radiator Fins
• Range :: 180-240 Degrees (82.2-115.5 C)
• Mounting Bracket :: Included
• Water-Neck :: Leak Proof Hose Gasket
• Hardware :: Included
• Accuracy :: 5 Degrees
• Built-In Display :: No
• Case :: Heavy-Duty ABS
• Activation Light :: No
• ---------- :: RELAY
• Relay Peak Amps :: 40
• Voltage :: 12 V DC
• Terminals :: 5
• Retention Spring :: 2X
• Style :: Single Pole/Double Throw
• Contacts :: Brass
• Tab Height :: 0.625in (19mm
• Mounting Style :: Tab Hole .25in (6.3mm)
• Terminal Height :: 0.432in (11mm)
• Terminal Width :: 0.250in (6mm)
• Small Footprint :: Yes
• ---------- :: Relay Harness
• Pins :: 5
• Lead Length :: 12in
• # of Wires :: 5
• Base Material :: Heavy-Duty ABS
• Terminals :: Zinc Coated
• Wire :: Copper
• ---------- :: Circuit Breaker
• Rating :: 40 Amp
• Posts :: 2
• Mounting Tabs :: Yes
• ---------- :: OTHER
• Instructions :: Detailed Instructions
• Warranty :: Limited Lifetime Warranty
